Applications for Lunar Lighting
Lunar Lighting’s innovative LED and HMI lighting solutions are engineered to perform across a wide range of industries and environments. From construction sites and major infrastructure projects to film sets, sporting arenas, and emergency operations — our glare-free, daylight-quality lighting provides unmatched clarity, safety, and efficiency.
For over three decades, Lunar has led the way in developing low-energy, high-output lighting technologies that deliver consistent, flicker-free illumination in the harshest conditions. Whether it’s enhancing visibility on a busy worksite, creating perfect conditions for live events, or lighting up critical rescue missions, Lunar Lights are trusted worldwide for their reliability, performance, and innovation.

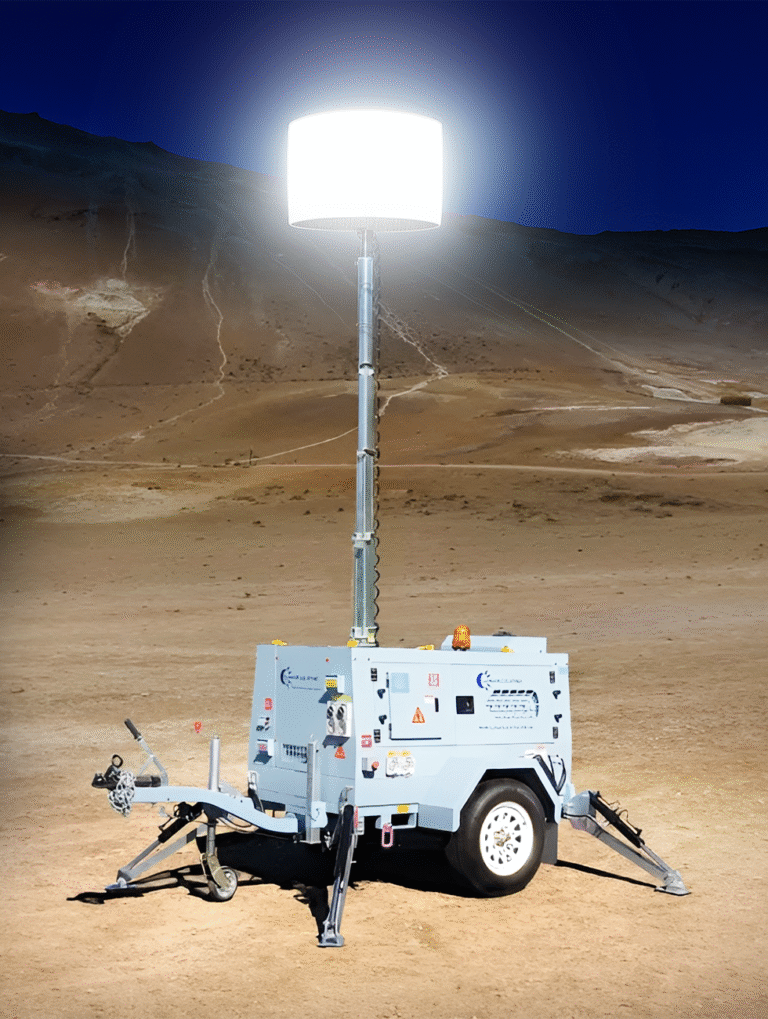

LED Lighting
We leave our competitors in the dark
LED lights and lighting towers have revolutionised large area lighting with their efficiency and reliability. But not all LED lights are the same. Our LED lights offer the HIGHEST Lumens per Watt available on the world market.
They are:
- More Compact
- More Energy Efficient
- Most Powerful
Superior LED Lighting Solutions
Lunar Lighting’s glare free LED light towers and portable lighting systems outperform conventional LED lighting in several key areas, reducing your costs while providing greater flexibility and enabling measurable productivity gains.Lunar Lighting LED Light
Conventional LED Light
- Glare free
- Dimmable
- Fully directional up to 360º
- LED efficacy: up to 230lm/W
- Blinding glare
- Not dimmable
- Directional up to 180º
- LED efficacy: approx. 120lm/W
- Fewer light towers required = savings on fuel, maintenance & logistics
- Better quality illumination = higher productivity on site / happier audiences
- Built tough for all conditions = lower cost of maintenance & less down time
- Glare-free light*
- Dimmable & flicker free
- Even and uniform 360° lighting
- Daylight colour temperature - 6000° Kelvin
- World class-leading LED efficacy - 230lm/W (vs approx. 120lm/W typical competitor)
- State of the art LEDs with extreme stability and high thermal ability
- Innovative LED thermal management system with pure aluminium heat sink
- Directional lighting options: 5× independent segments of 72° OR 8× independent segments of 45° per segment
- Can be retrofitted to conventional lighting towers, poles, plant and machinery
* Glare-free properties are dependent upon dimmer switch settings.
** Features and Figures may be subject to change at any time without notice.
** Features and Figures may be subject to change at any time without notice.
HMI Lighting
HMI Lighting & HMI Portable Light Towers
Lunar Lighting HMI Lights
- Glare free, diffused light
- No shadows or hotspots
- Globe efficacies up to 1,200,000 lumens
- Fewer light units needed saves $$$
- Hot re-strike
- Selectable 180º or 360º
- 6000 Kelvin is daylight quality
Conventional Lights
- Blinding directional light
- Heavy shadowing & hotspots
- Up to 100,000 lumens per globe
- More light units needed costs $$$
- Up to 20 min wait to re-strike
- Directional up to 180º
- Unnatural colour temperature

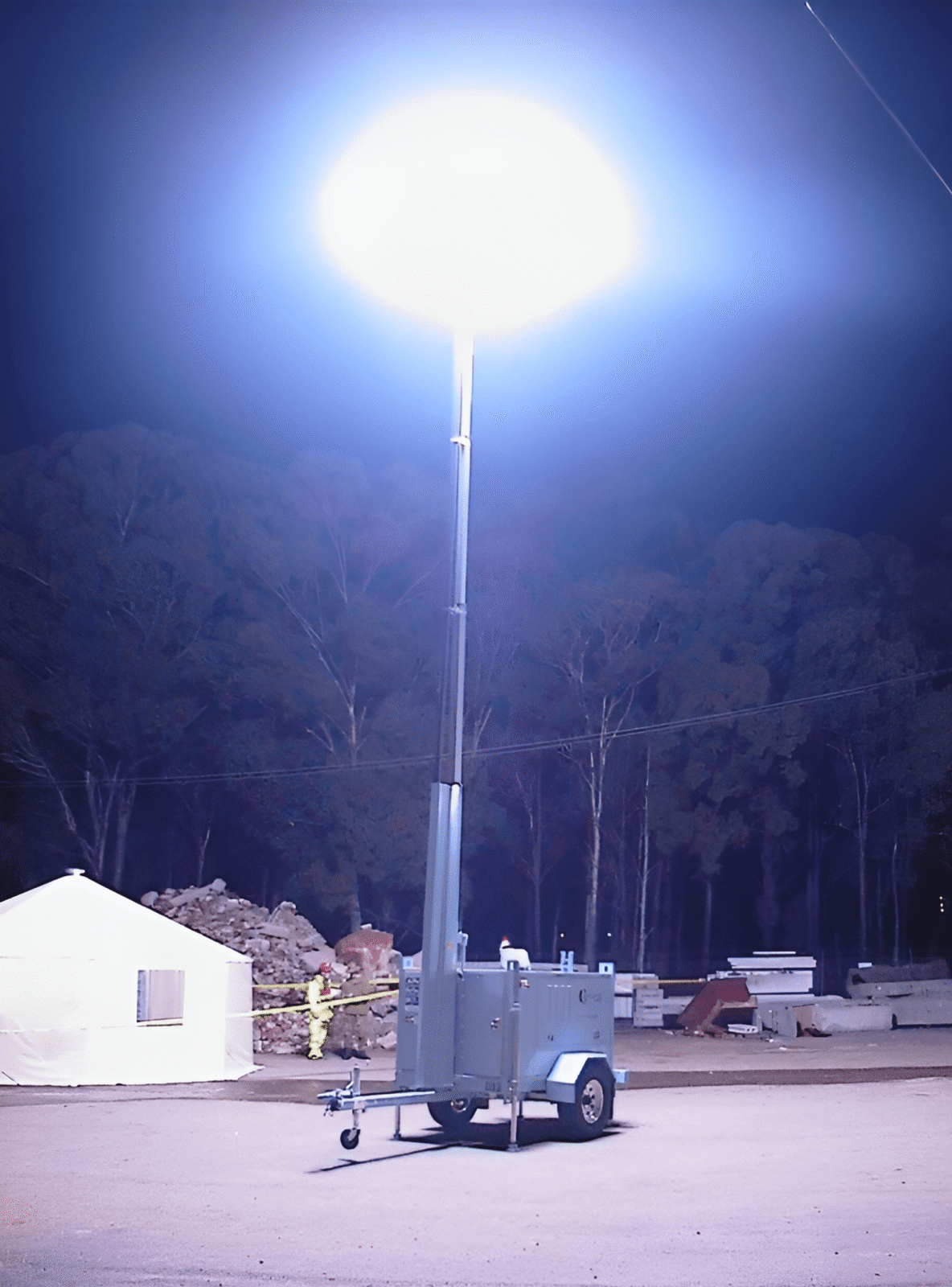

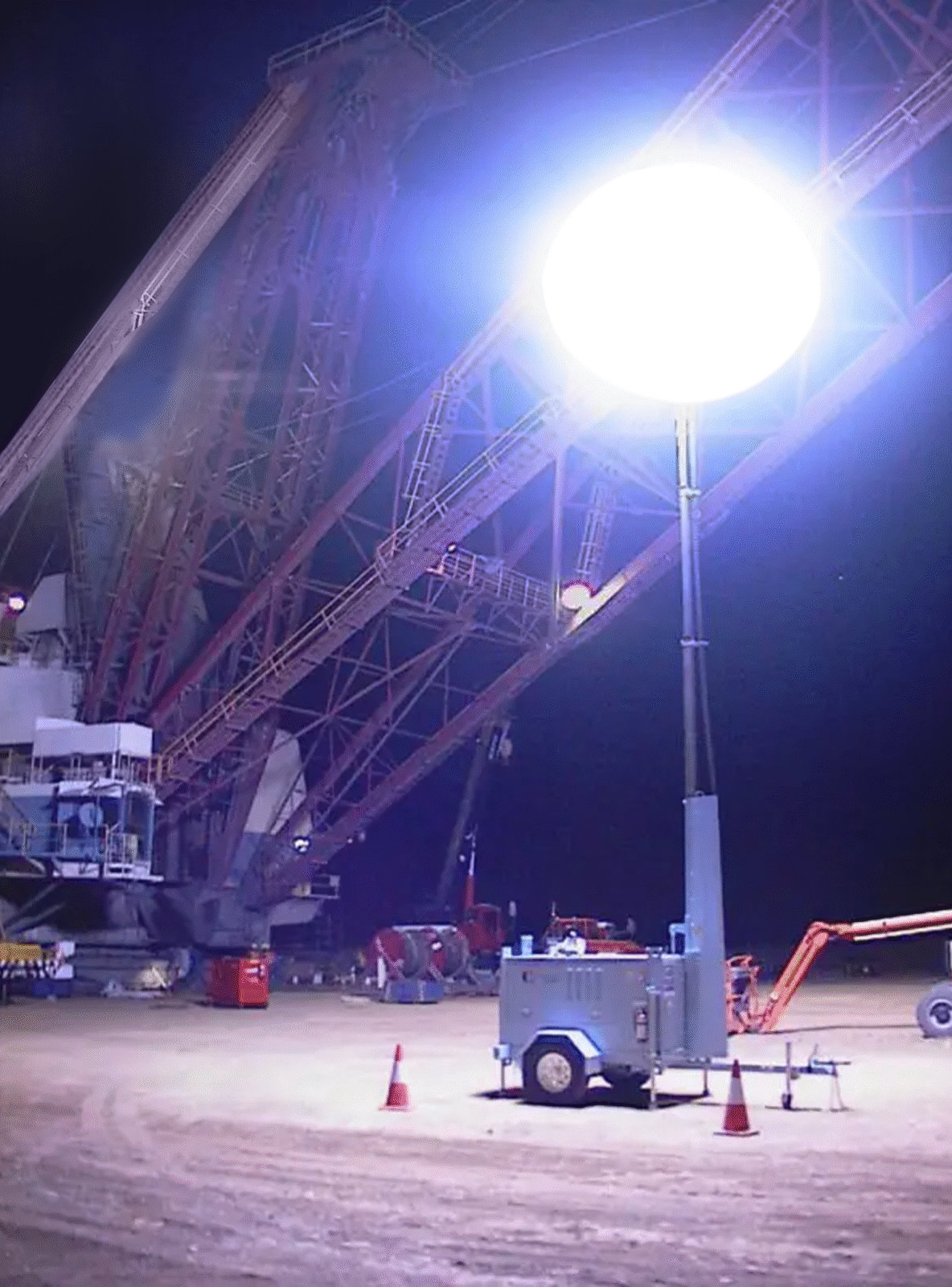

12,000W HMI Lunar Light Tower
THE MOST POWERFUL HMI LIGHTING TOWER AVAILABLE
The Lunar 12,000W HMI lighting tower automation is the brightest, most powerful light at night on the market with the globe rated at 1,200,000 lumens.
Replacing many conventional lighting towers and illuminating up to 50,000m², it not only turns night into day but it saves you significant amounts of time and money.
It features a 10m telescopic mast and a built in generator to vastly outperform any conventional floodlight. It has endless applications, from roadworks and construction, to mining, public events and sports.
- Very large lighting coverage
- Protected by worldwide patents and trade marks
- Can be towed by 4WD/SUV and standard pickups
- Designed to operate reliably in any terrain and in any weather
- Cost of lighting is dramatically less than using conventional lighting towers
- Glare free – despite the phenomenal light, it is glare free and easy to work with
- Lift points and forklift – the unit can be lifted for trucking, shipping and transport
- Hardworking and reliable – generator runs at 60% capacity, even at full lighting power
- Push-button setup and 4× individually controlled hydraulic stabilisers for uneven terrain
- Save up to 4600L in fuel each month – significant reductions in cost and carbon emissions
- Highly productive voltage – allows dusk to dawn manual work schedules with fatigue-free light
- Natural daylight generator experience – the light produces 6000 Kelvin, the equivalent of daylight
- Powered by a purpose built, military-tested rig designed for harsh and remote environments in the world
- NATO Stock Numbers issued after stringent military testing: NSN 6230-66-154-6202, Part Number 12 KWLLT
- Incredible quality output – the 12,000W globe is rated at 1,200,000 lumens output – most conventional floodlights have around 100,000 lumens
Dimensions
- Length: 4.17m (13.7ft)
- Width: 1.93m (6.3ft)
- Height: 2.2m (7.3ft)
- Weight: 1900kg (4189 pounds)
- Transport: Tilt tray, crane truck or tow behind suitable vehicle
Pintle hook with O-ring coupling or 50mm ball available
Power
- Type: 4 cylinder vertical inline diesel engine
- Combustion System: Direct injection
- Cooling System: Liquid-Cooled with Radiator
- Rating: 18kW at 1500rpm. Tower uses 10.8kW on full load (64% of available power). (Yanmar TNV88 engine)
- Fuel Consumption: Approx. 2.5L/hr at 64% load
- Fuel Tank Capacity: 250 Litres (64 gallons)
- Running Time: Approx. 100–110 hours continuous run time
Generator
- Prime Power: 18kVA single phase (Tower uses ~12.34kVA, 68.56%)
- Additional Outlets (optional): 3kVA available
- Overload Protection: Mains circuit breaker, main thermal circuit breaker & earth leakage RCD (1 × 100A)
- Power Outlets – Lighting: Single Phase
Light Source
- HMI Lamp: 1 × 12,000W, HMI Hot restrike
- Lumens: 1,200,000 lumens output
- Direction: 360° diffused (180° optional – Horizontal/Vertical)
- Colour Temperature: 6000° Kelvin – Natural daylight
Lunar Light Tower
- Hydraulics: Fully hydraulic with push button controls – 12V DC
- Suspension: Off-road Hexagonal rubber torsion bar
- Sound Rating: Silenced body rated at 82 DBA @ 1m
- Brakes: Mechanical disc brakes
- Mast Type: Hydraulic – 4 stage cable extending
- Mast Height: 10 metres (33 feet)
- Wind Speed: Up to 100 km/h (60 mph)
4000W HMI Lunar Light Tower
4000W HMI Lunar Light: Maximum Brightness, Minimum Cost
The 4000W HMI Lunar Light is designed for any situation where powerful yet high quality light is required.
With massive globe efficacy of 400,000 lumens, it is comparable to 4 conventional lighting towers, but with much lower costs for transport, fuel, maintenance and setup.
Light head can be affixed to structures where limited space does not allow the positioning of a light tower.
- Glare-free light
- Coverage of approx. 8000m²
- Transport in a car, no need to tow
- Globe efficacy is 400,000 lumens
- More light for less power saves $$$
- Duplicates daylight colour temperature
- 360° and 180° capability – change over in minutes
- Powered by a conventional power source or small generator
- Versatile – Use on light tower or suspend the light head from machinery
- Hot re-strike capability – no need to wait for the light to cool down before re-striking
1200W HMI Lunar Light Tower
1200W HMI Lunar Light – Portable & Quick Setup
The 1200W HMI Lunar Light is ideal for any application where portability and speed of setup is important. Rather than glary lights which are visually fatiguing, the 1200W Lunar light can be placed close to the work and can be carried by hand.
- Glare-free light
- Power draw only 5A
- Coverage of approx. 3000m²
- Globe efficacy is 110,000 lumens
- More light for less power saves $$$
- Duplicates daylight colour temperature
- 360° and 180° capability – change over in minutes
- Portable – carried by hand and transported in a car boot
- Takes only minutes to set up – the tripod is simple to erect

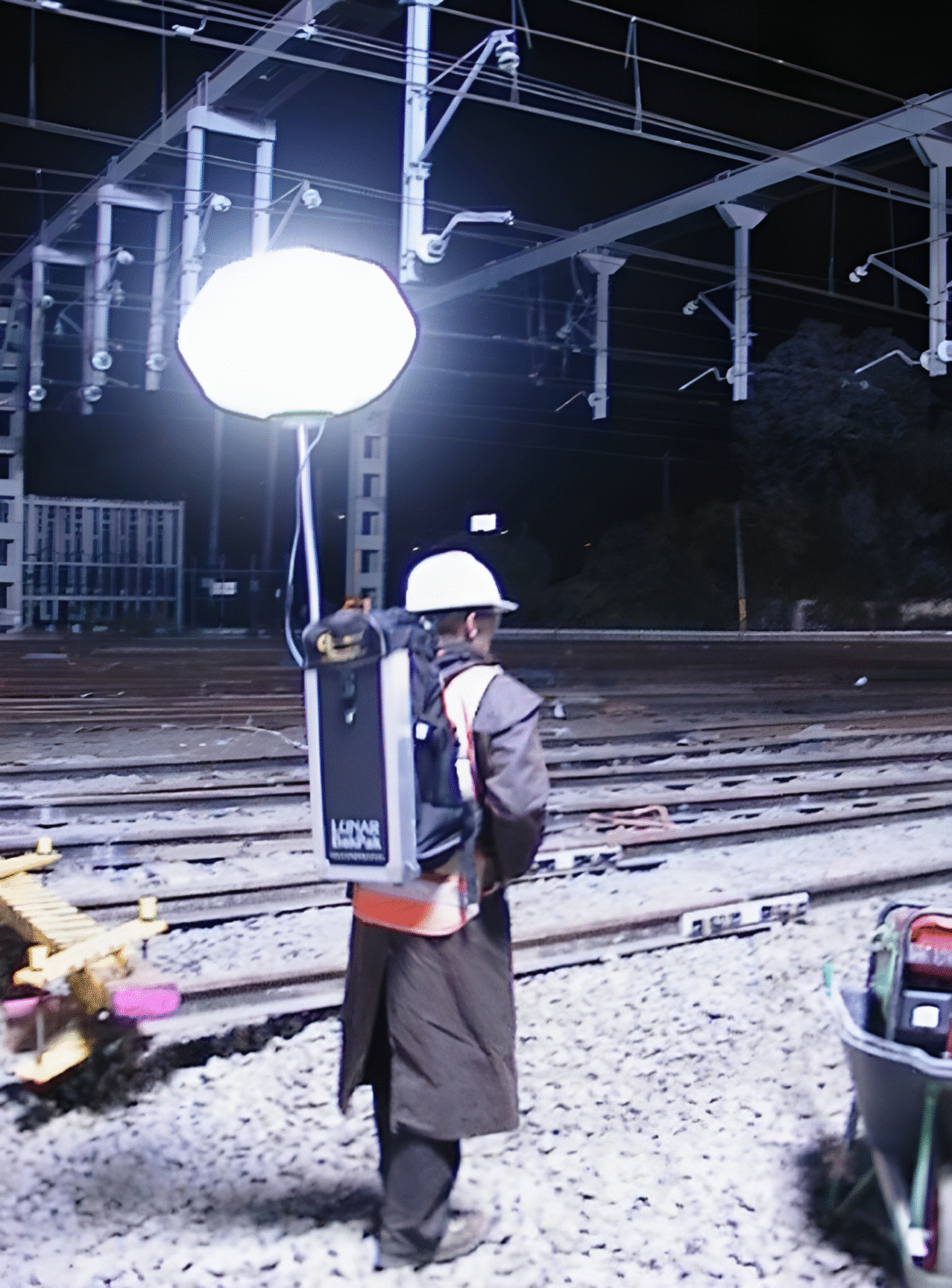

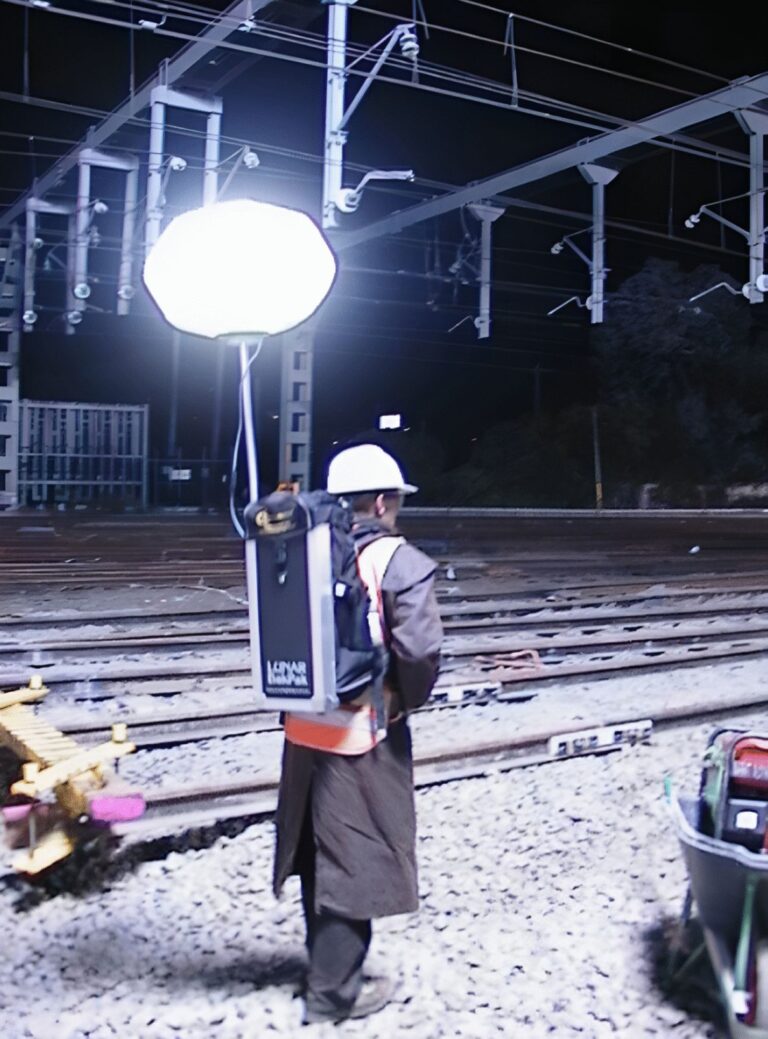

Glare-Free 12V Back Pack Light
Powerful portable light for mobile operations
Carry on your back, the light that walks with you
The Lunar 12V BakPak light is a lightweight and the perfect solution for mobile lighting. Whether it’s a search-and-rescue operation, regular night maintenance or repair call outs, your teams can have daylight-quality lighting wherever they go. Perfect for:- Li-Ion battery
- Search and rescue
- Mobile work teams
- Space limited areas travel essentials
- Maintenance call outs at night or during blackouts
- Weight: Lightweight, easy to carry, weighs only 8kg
- Coverage: Glare-free coverage of approximately 250m²
- Lighting Capability: 360° and 180° – easily switch between diffused 360° or directional beam
- Weather Resistance: Works in all weather conditions, fully weather-proof
- Colour Temperature: 6000°K – close to daylight quality
- Low Maintenance: HID lamp rated for 5,000 hours (≈ 600 nights of 8-hour use)
- Charging Options: Solar charging mats available
- Battery: Rechargeable Lithium-ion (1kg), lasts up to 4 hours
- Recharge Methods: Car cigarette lighter or mains power (accessories included)
* Features and specifications may be subject to change at any time without notice.
2000W Lunar Halogen Light
Portable, powerful halogen lighting for any application
The Lunar 2000W halogen light is a flexible, powerful light for roadworks, construction, public events, mining, maintenance, home depot, film and tv production, emergency, military and security applications with lifetime guarantee.
It runs from either a conventional power source or a small generator. It can be transported in a car, and set up quickly and easily.
It runs from either a conventional power source or a small generator. It can be transported in a car, and set up quickly and easily.
- Light Source: Glare-free 2000W Halogen light bulb
- Colour Temperature: 3200°Kelvin
- IP Rating: IPX3
- Hot Restrike Efficiency: No need to wait for the globe to cool down before restriking, saving time
- Lamp Life: 2000 hours
- Weight: 13 kg, can be carried by one person
- Weather Resistance: Operates in all weather conditions
- Input Current: 9.1 Amps
- Input Voltage: 240V A.C (110V also available)
- Input Frequency: 50 Hz (60 Hz also available)
- Dimensions: Inflated dimensions are 90cm x 70cm
- Light Coverage: Approximately 2000m²
- Transport: Stored and transported in impact-resistant road case; transport in a car, no need to tow, several can be packed into a car
- Mounting Options: Can be mounted onto machinery and equipment; tripod mount or suspend from infrastructure or machinery
- Setup: Immediate setup – tripod rises to almost 4 metres and is 2 metres long when stored
- Lamp Type: Designed to be used with self-shielded lamps only; self-shielded lamps supplied by Lunar Lighting
- NATO Stock Number: 6230-66-154-6218 Part No. 2KHLL
- Lunar Lighting Envelopes: Can direct light 360° or 180° vertically or horizontally; envelopes can be interchanged as required
- Standards Compliance: Complies with Australian and New Zealand Standards (AS/NZS 60598.1, AS/NZS 60598.2.5, AS/NZS 60529 – IPX3 Rating, AS/NZS CISPR15 – EMC Rating)
* Specifications may be subject to change without notice.
2000W Lunar Halogen Light
Flood Light Systems & Towers
Flood Light makes world class-leading floodlights for large-area outdoor illumination, without the glare typical of other systems.
Flood Light and towers can light up massive areas in every direction from a single tower. Our 12kW model uses a single 12,000W HMI globe with a globe efficacy of 1,200,000 Lumens, illuminating up to 50,000m² with glare-free daylight-quality light at 6000K colour temperature, with nearly over 12x the lumen output of conventional flood light towers. Our LED flood lights have the highest energy efficiency in the world market with 218 lumens/watt.
Whether for construction installation, stadium, roadworks, events, sports, mining, pool area, home depot, indoor, outdoor bulbs, or any other commercial use where you need to turn night into day, Lunar Lighting is your best choice.
- Coverage: Illuminate from 2000 to approx. 50,000 m²
- Light Sources & Output: Range of light sources & lumen strengths, up to 1,200,000 lumens globe rating; internal reflector can increase output by approx. 20%
- 12000W Flood Light Tower: Massive lighting capacity

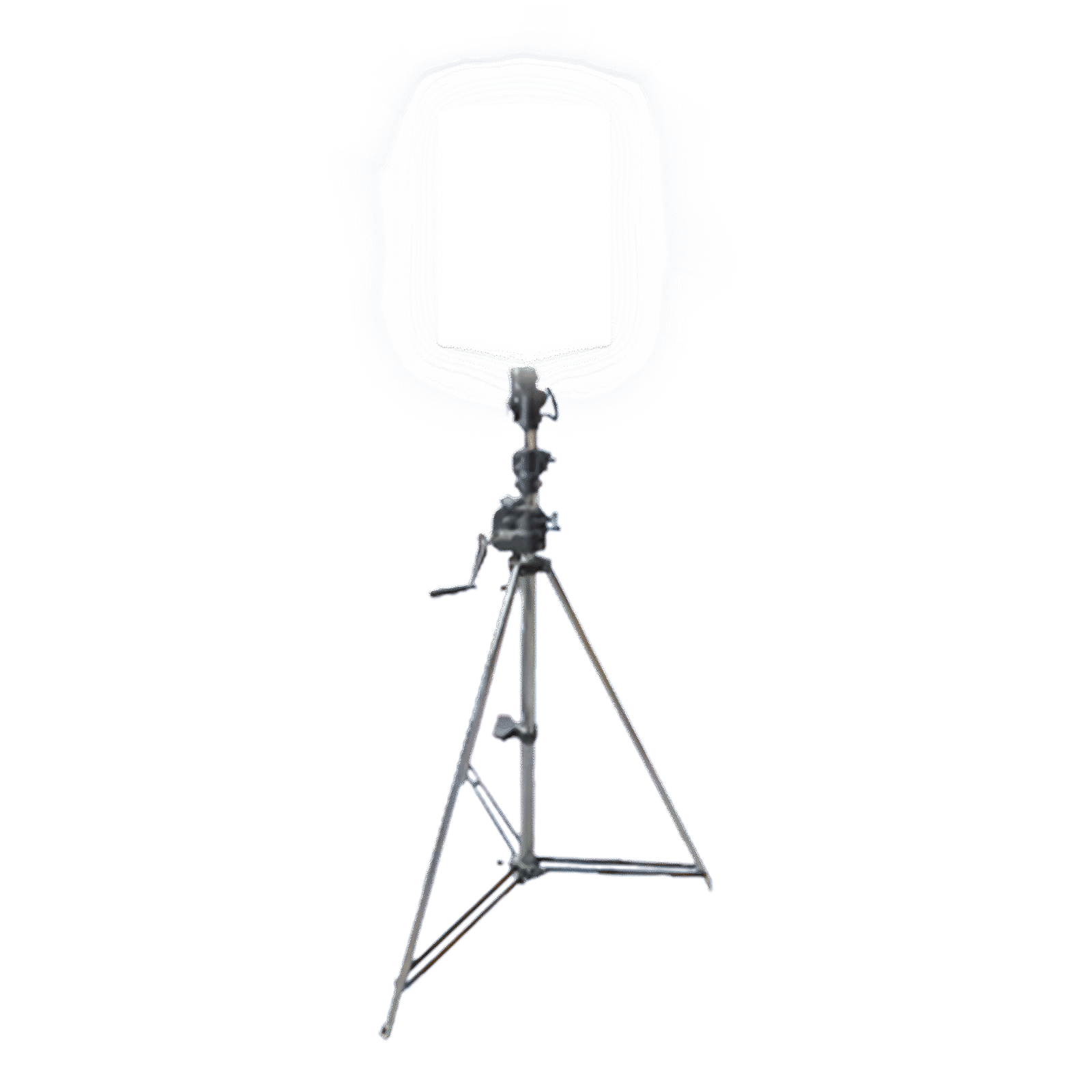

- 1710W LED Flood Lights: Tripod or light tower mount, highest efficiency
- 2000W Tripod Flood Light: Fits in your car boot, illuminates 2000 m²
- 1200W Tripod Floodlight: Fits in your car, no towing, lights half a football field
- Cost & Efficiency: Less transport cost, less setup and pack-away time, less fuel cost
- Glare-Free Light: Safe for eyes, reduces eye fatigue
- Portability: Smaller, highly portable floodlight tripods for close-in work
- Light Direction: 360° or 180° – change over in minutes
- Hot Restrike: No waiting for cool down before re-striking
- Colour Temperature: Glare-free daylight reproduction of 6000K
* Specifications may be subject to change without notice.

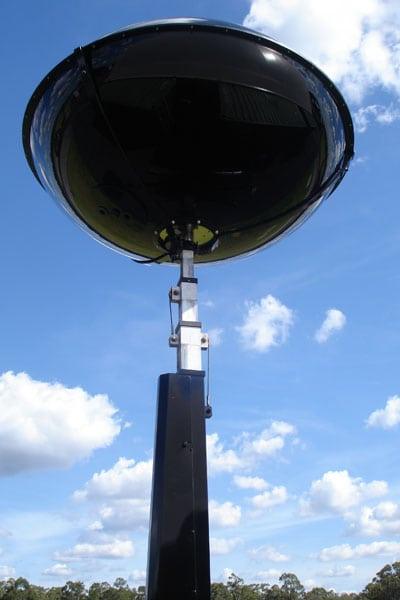

Portable Infrared Light Tower
Large-area infra-red floodlights for security, military & surveillance
Portable Infrared Light illuminate huge areas for night vision surveillance – up to approx. 50,000 m²*.
The 12,000W globe is rated at 1,200,000 lumens output.
Portable Infrared Light have a variety of applications – military purposes, prison perimeter lighting, night vision perimeter surveillance, border control, traffic movement monitoring and more.
After stringent testing by the military, NATO stock numbers have been issued:
12kW Lunar Lighting Tower: NSN 6230-66-154-6202, Part Number 12 KWLLT
2000W Lunar Light: NSN 6230-66-154-6218, Part Number 2KHLL
- Setup: Set up in minutes – push-button setup & quick start up
- Approval: Approved and purchased by the US Department of Homeland Security and numerous police and security agencies
- Power Supply: Dependable, silenced generator or mains power
- Hot Restrike: No need to wait to restrike globe after switching off
- Operating Time: 100 continuous hours on a single tank
- Load Tolerance: Engineered with 30% load tolerance for dependable use
* Features and specifications may be subject to change at any time without notice.

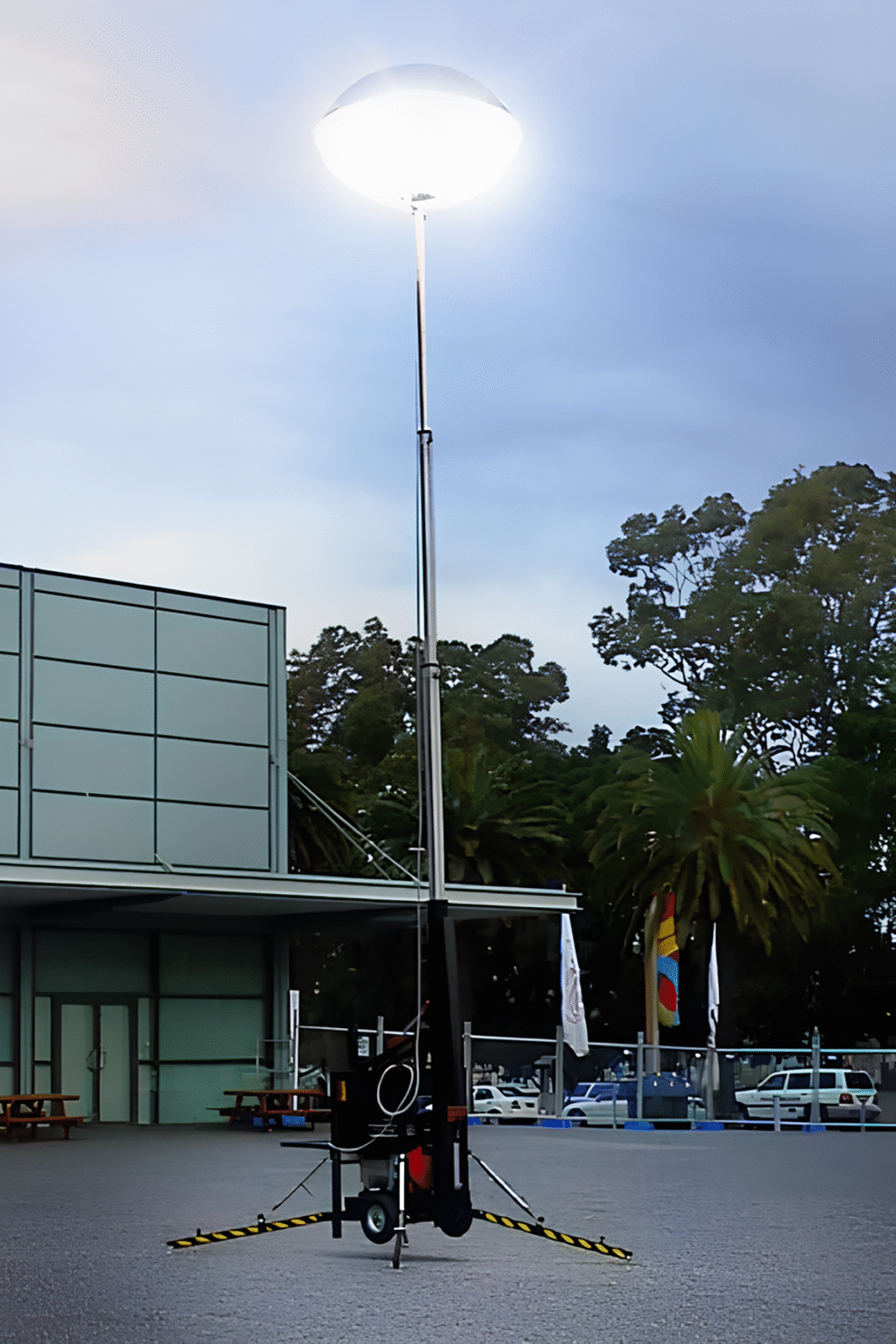

Rigid Polymer Lights
Glare-Free 12,000W HMI Lunar Lights For Permanent Installations
Rigid Polymer HMI Lunar are designed for permanent installation in situations where large outdoor areas need daylight-quality, glare-free lighting.
They are perfect for:
- Car parks
- Golf courses
- Sporting grounds
- Public & civic areas
- anywhere that requires permanent, high quality outdoor lighting
They provide a weather tough, glare-free lighting solution with low running costs due to the high efficiency of our HMI lamps.
- Flexible: Range of options from 2,000W to 12,000W from a single unit
- Powerful: 12,000W globe rated at 1,200,000 lumens output
- High Quality Light: Colour temperature of 6000° Kelvin, replicates daylight
- Glare Free: No blinding light or eye fatigue
- Uniform Lighting: Provides consistent light coverage
* Features and specifications may be subject to change at any time without notice.
